Custom 3D Tools
by Greenbriar Studio - A Maya Conductor Developer

CR2 Loader for Maya - Plugin Ver. 1.3

Directly Import Poser PZ3 / PZZ / CR2 / CRZ / PP2 / PPZ / HR2 / HRZ files as Maya native models

Companion Animation Loader now available to load Poser Animations

Available for Maya 5,6,7,8 for PC
Maya 6,7,8 for Mac

Now you can easily use hi-res human figures in your Maya work.
Even the newest 38K polygon Victoria 3 models from DAZ!

New with version 1.2

New Set Pose from CR2 feature
Changes in joint construction to work with new Animation Loader
Smaller dialog

This plugin allows you to move complete figures from Poser to Maya.

CR2 Loader's main features:

Creates welded single mesh with no normal problems. Keeps all Poser named parts and surfaces.

Imports ALL morphs. Joins multi part morphs into body level morphs. (When loading in 'Do Not Weld' mode, all morphs are left separate as they are in Poser for compatibility.)

Imports all material colors, texture, trans, reflection and bump maps and settings, applying them correctly forMaya.

Imports Poser skeleton and joint positions.

Loads multiple figures from a CR2 file and will also load props, each as a separate object.

Loads external props, props with morphs and inline geometry props.

Parents and positions figures and props. Optional scaling of props.

Optionally -.

Auto skins the figure using either smooth skinning or rigid skinning with options to use the Poser part definitions for skinning and for auto creation of joint lattices.

Has a create character function. This allows you to 'spin the dials' in Poser and create a new character and when you import it into Maya, all the creation morphs will be applied to the base mesh instead of being loaded as morphs. This helps reduce the number of morphs to a Maya manageable level. It functions by applying, at the dial setting, any non-zero morphs and loading all morphs set to zero to use for animation. You can also flag morphs that are just to be dropped and not imported. A more efficient way to create characters in Poser for Maya! Now also uses Body level Poser dial settings as well as part level settings when merging character morphs.

New Poser Morph Creation Options

The CR2 Loader was originally designed for importing Poser figures into 3D apps. But we have also added features for use in creating custom Poser morphs and models. These options - to not weld the parts together - preserves the Poser required extra points and point order. With this turned on, you can work on the model as a whole, creating part or whole body morphs on a single morph. We will also have a plugin that will output a single morph into seperate .obj files with correct point alignments to import the pieces back into Poser. (See our write morph by part plugin for LW.)

This plugin correctly parents all bones. It also scales, moves and parents props and secondary figures that were in the CR2 file.

What this plugin does NOT do in the 1.0 release:

Created a completed weight map set. Joints still have to be edited (but hopefully not for much longer). How much depends on which skinning option you choose. The plugin does create a fully skinned model, so the characters are animatable as is, but the joints need to be smoother.

Read Poser pose type files. (See Animation Loader - available soon for Maya.)

Note - pz3 / pzz support in CR2 Loader is currently the same as cr2 / crz - figures and props, we do not import the animation data from the pz3 / pzz files.

Issues with CR2 Loader in Maya:

I have only come across one issue: morph capacity.

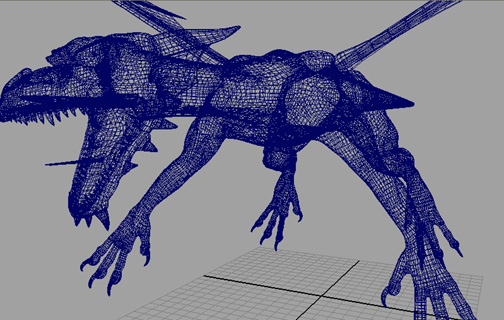

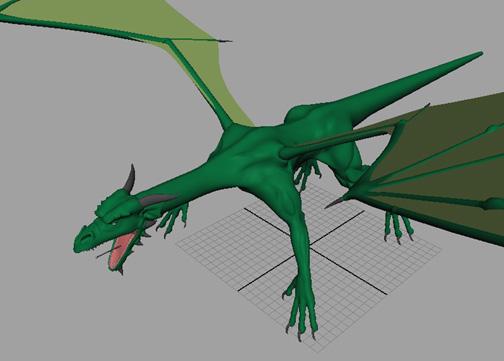

The biggest problem with these figures in Maya is the large memory requirements for morph support. Using the blend shapes system I can load figures with 125-150 morphs on my 1.5G system. I can not load Vic3, DAZ Dragon or Vic or Mike 2 fully loaded with morphs.

So the CR2 Loader supports three morph formats - two using blend shapes - the first with the morph meshes removed and the second with the morph meshes still present so you can edit them. (I can only load about 100 morphs with meshes on my system.). The other mode is the Greenbriar Compressed morph. We decided that we would have to build a morph system that would allow the higher morph count figures to be easily run in Maya. And we wanted a morph animation interface where you could control all of the morphs for all characters in the scene from one panel. This product is scheduled to be released for Maya in September.

CR2 Loader Available now for PC! (Max OSX coming soon!)

You can pay by Paypal from our order page or by check by mail.
When we are notified by Paypal or recieve your mail payment, we will email you a plugin to read an id number that we need to create your license. On recieving this id number back, we will email you the plugin and license key.

Email to order: grnbriar@mindspring.com

Scroll down for more examples.

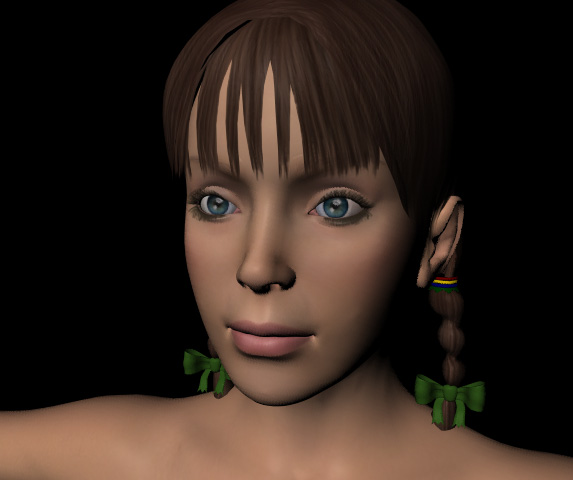

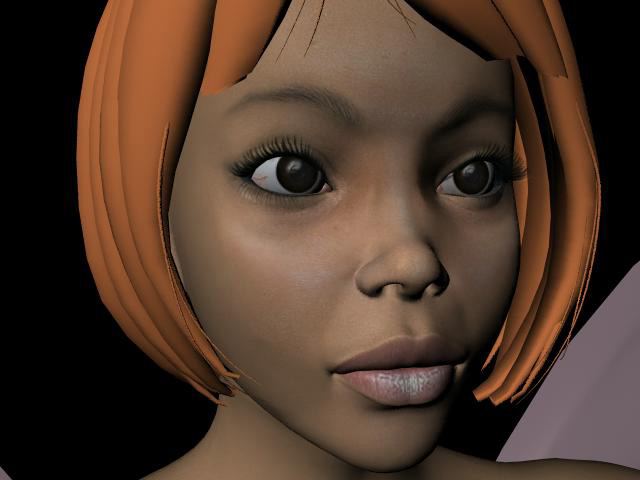

Alexis face in Maya render close up. Trans map on eyelashes.

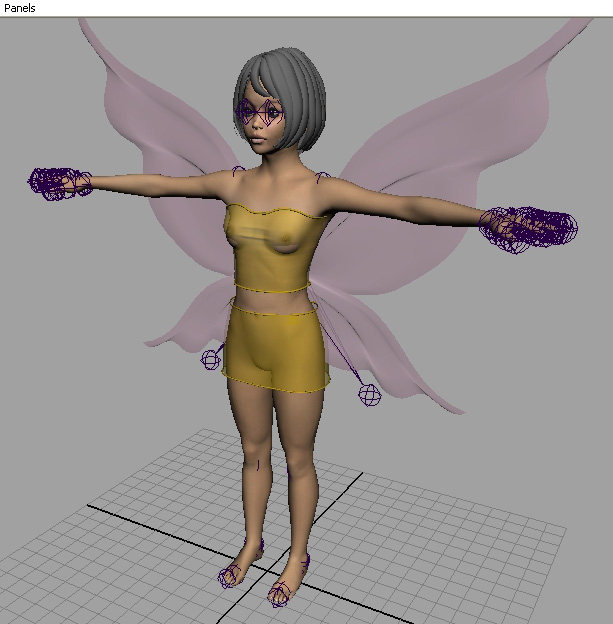

Fairy alexis with default costume and colors.Unretouched. The shirt needs to move down a bit.Conforming tool, which aligns the bones snaps this correctly in place. Or it can be adjusted down by hand.

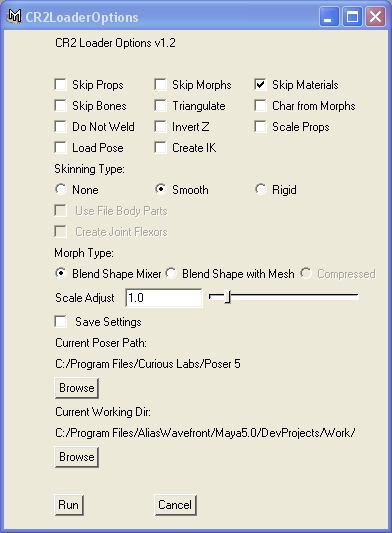

PT Mill Girl w/ Cayenne hair by Thorne. User Interface Hardware Texturing.

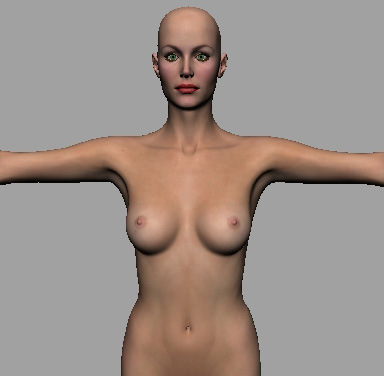

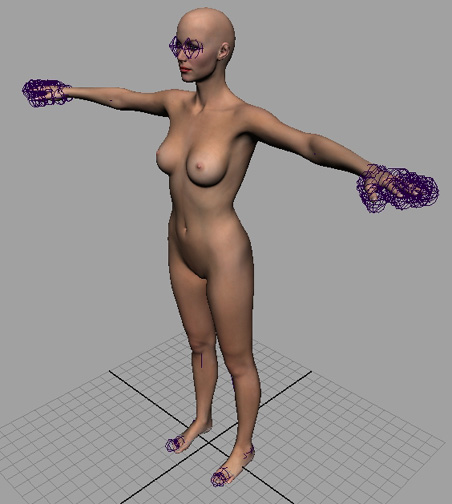

DAZ Vic 3 standard with hi-res maps.
